Hydraulics Modular Valves
Hydraulics Modular Valves

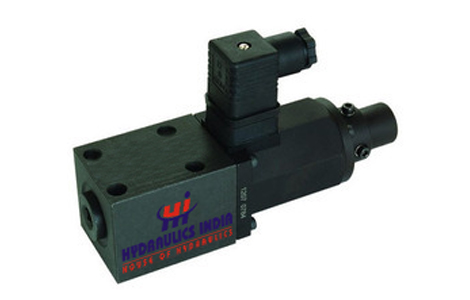

Proportional Pressure Relief Valves Direct Operated Type EDG
- They can Adjust system pressure proportionally based on input electricity of proportional solenoids.
- It’s flow is small and usually is used as pilot valve for System Pressure tele control valve and other valves.
- The unloading when pressure is over loading can be come true by installing safe insert file then it can protect proportional solenoid and system.
BRV Moduler Reducing Valves
- Max Pressure : 210 bar.
- Max Flow Size : 02 up to 35L / min & Size 03 up to 50L/Min.
- The valve can reduce pressure valve of one return road in system.
- There are three kind of pressure adjustment range.
RV Pressure Relief Valves
- Max Pressure : 210 bar.
- The Valve can control pressure valve of one oil road in system. Manifold pressure can come true by adjustment range.
- There are three kinds of Pressure adjustment range.
- Max. Flow size : 02 upto 35L/min & Size 03 upto 70L/min.
TCV Modular Throttle and Check Valves
- The Valve can control floe for positive direction pass oil port.Big and small can be adjusted by handle.It passes to check valve for reserve flow.
- Max Pressure : 210 bar.
- Max flow Size : 02 up to 35L/min and Size up to 70L/min.
PVC Pilot Operated Check Valves
- The valve can come true single flow of fluid for reserve. It is closed of without leaking.
- Control Plunger can push out check valve and come true converse flow.
- The valve usually be used to carry out to protect pressure of component or Oil cat.
- Max. Pressure : 210 bar.
- Max. Flow Size : 02up to 35L/Min & Size : 03 upto 70L/min.
We are one of the trusted manufacturers, traders and suppliers of Hydraulic Cylinder and Hydraulic Power Pack based in Ahmedabad, Gujarat. We are leading supplier of Hydraulic Power pack and Hydraulic Cylinder in Mehsana, Surat, Rajkot, Bhavnagar, Sanand, Baroda, Bharuch.
