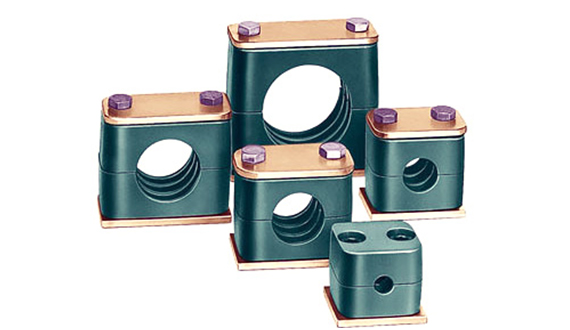

Hydraulic Pipe Clamp Heavy

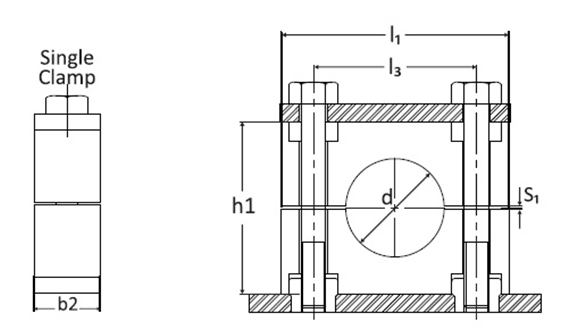

Dia d			Group	Size No.	h1	l1	l3	s1
mm	nominal bore	inch OD	Group	Size No.	h1	l1	l3	s1

6			PCS HA	6	32	55	33	1
		1/4		6.4
8				8
		3/8		9.5
10	G1/8			10
12				12
		1/2		112.7
	G1/4			13.5
14				14
15				15
16		5/8		16
	G3/8			17.2
18				18
	G1/2	3/4	PCS HB	19	48	70	45	1
20				20
	G3/4			21.3
22		7/8		22
25		1		25
	G1			26.9
28				28
30				30
30			PCS HC	30	60	85	60	1
		1.1/4		32
				33.7
35				35
38		1.1/2		38
40			PCD HD	40	90	115	90	2
38		1.1/2		38
42	G1.1/4			42
		1.3/4		44.5
	G1.1/2			48.3
		2		50.8

Dia d			Group	Size No.	h1	l1	l3	s1
mm	nominal bore	inch OD	Group	Size No.	h1	l1	l3	s1
55			PCS HD	55	90	115	90	2
		2.1/4		57
	G2			60.3
		2.1/2		63.5
65				65
70				70
65			PCD HE	65	120	152	122	3
70				70
73				73
75				75
	G 2.1/2	3		76.1
80				80
		3.1/4		82.5
	G3			88.9
G3			PCD HF	88.9	170	205	168	3
100				100
	G3.1/2			102
		4.1/4		108
	G4			114
		5		127
		5.1/4		133
		5.1/4	PCS HG	133	200	250	205	4
140	G5			140
		6		152
	G6			168
	G6		PCS HH	168	270	320	265	4
		8.1/4		216
	G8			219
	G8		PCD HI	219	410	470	395	10
	G10			273
	G12			324
	G14		PCS HD	356	530	630	535	30
	G16		PCS HD	406	530	630	535	30

Group	HA	HB	HC	HD	HE	HF	HG	HH	HI	HI
Length l2	73	85	100	140	180	225	270	340	520	680
Width b2	30	20	30	45	60	80	90	120	160	180
Thickness S2	8	8	8	10	10	15	15	25	30	30

We are one of the trusted manufacturers, traders and suppliers of Hydraulic Cylinder and Hydraulic Power Pack based in Ahmedabad, Gujarat. We are leading supplier of Hydraulic Power pack and Hydraulic Cylinder in Mehsana, Surat, Rajkot, Bhavnagar, Sanand, Baroda, Bharuch.

Hydraulics Pipe Clamp Heavy
