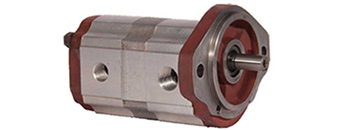

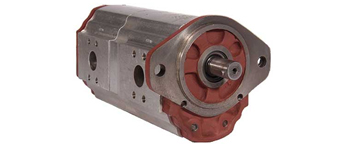

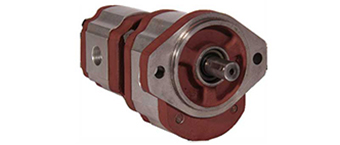

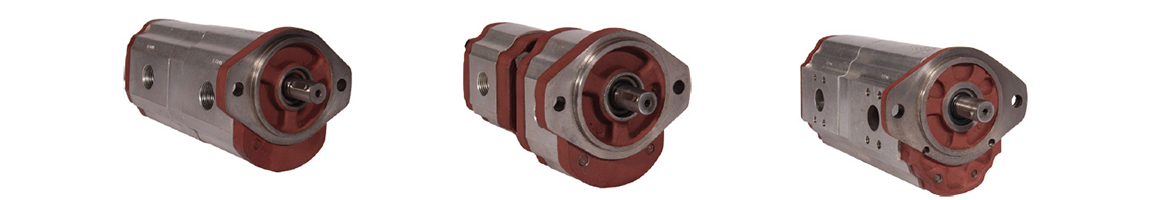

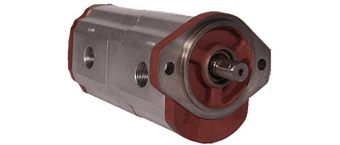

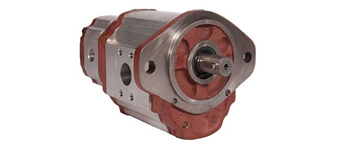

Hydraulic Tandem Pumps
FEATURES OF TANDEM PUMPS
- High Pressure
- Less Noise
- More Efficiency
- Less Pressure Drop
- More Life
Group 0P - 0P :
0P Pumps are available in two bolt & four bolt flanges with parallel & taper shafts.
Displacement : 2.4 Lpm to 14 Lpm Maximum pressure @ 200 Bar.
Group 1P - 1P :
Hydraulic India has developed this product for High Pressure Application,Which Can use upto 230 bar maximum pressure. Pumps are available in two Bolt & Four Bolt Flanges with parallel, Spline & Shafts.
Displacement : 14 Lpm to 82 Lpm. Maximum pressure @ 230 bar.
Group 1P - 0P :
Pumps are available in two bolt & four bolt flanges with parallel, spline & taper shafts.
Displacement :8 Lpm to 48 Lpm Maximum pressure @ 200 Bar.
Group 2P - 1P
Pumps are available in two Bolt & Four Bolt Flanges with parallel, Spline & Shafts.
Displacement : 30 Lpm to 140 Lpm. Maximum pressure @ 200 bar.
Group 2P - 2P
Pumps are available in two bolt & four bolt flanges with parallel, spline & taper shafts.
Displacement : 60 Lpm to 200 Lpm Maximum pressure @ 200 Bar
Group 2P - 2P
Pumps are available in two bolt & four bolt flanges with parallel, spline & taper shafts.
Displacement : 60 Lpm to 200 Lpm Maximum pressure @ 200 Bar
TANDEM PUMP CONSTRUCTION
WE ARE MANUFACTURING THE HIP SERIES TANDEM PUMP WITH “ SPECIAL COUPLING” CONNECTION.
Benefit of this Special Coupling Connections:
- Rear pump interchangeability with any combination of HIP Tandem pump.
- Both pump can be used at pick pressure.
- The Protrusion parts of the Tang shaft seats in properly with coupling.
- Since it is special coupling, if both motor belt housing pump are misaligned the functioning won't be affected.
- The user can change the pump whichever is worn out at the time of replacement.
- Due to special coupling, the life of pump are more efficient.
| DESCRIPTION | ||
|---|---|---|
| Sr. No. | Model No. | Bolt Length |
| 1 | HIP 14 + HIP 14 | 150 |
| 2 | HIP 17 + HIP 14 | 150 |
| 3 | HIP 17 + HIP 17 | 160 |
| 4 | HIP 20 + HIP 14 | 160 |
| 5 | HIP 20 + HIP 17 | 160 |
| 6 | HIP 20 + HIP 20 | 160 |
| 7 | HIP 28 + HIP 14 | 160 |
| 8 | HIP 28 + HIP 17 | 165 |
| 9 | HIP 28 + HIP 20 | 165 |
| 10 | HIP 28 + HIP 28 | 165 |
| 11 | HIP 36 + HIP 14 | 165 |
| 12 | HIP 36 + HIP 17 | 165 |
| 13 | HIP 36 + HIP 20 | 170 |
| 14 | HIP 36 + HIP 28 | 175 |
| 15 | HIP 36 + HIP 36 | 175 |
| 16 | HIP 44 + HIP 14 | 170 |
| 17 | HIP 44 + HIP 17 | 170 |
| 18 | HIP 44 + HIP 20 | 175 |
| 19 | HIP 44 + HIP 28 | 175 |
| 20 | HIP 44 + HIP 36 | 180 |
| 21 | HIP 44 + HIP 44 | 185 |
| 22 | HIP 52 + HIP 14 | 175 |
| 23 | HIP 52 + HIP 17 | 175 |
| 24 | HIP 52 + HIP 20 | 175 |
| 25 | HIP 52 + HIP 28 | 180 |
| 26 | HIP 52 + HIP 36 | 185 |
| 27 | HIP 52 + HIP 44 | 190 |
| DESCRIPTION | ||
|---|---|---|
| Sr. No. | Model No. | Bolt Length |
| 28 | HIP 52 + HIP 52 | 195 |
| 29 | HIP 60 + HIP 14 | 170 |
| 30 | HIP 60 + HIP 17 | 180 |
| 31 | HIP 60 + HIP 20 | 180 |
| 32 | HIP 60 + HIP 28 | 185 |
| 33 | HIP 60 + HIP 36 | 190 |
| 34 | HIP 60 + HIP 44 | 190 |
| 35 | HIP 60 + HIP 52 | 195 |
| 36 | HIP 60 + HIP 60 | 200 |
| 37 | HIP 72 + HIP 14 | 170 |
| 38 | HIP 72 + HIP 17 | 185 |
| 39 | HIP 72 + HIP 20 | 185 |
| 40 | HIP 72 + HIP 28 | 190 |
| 41 | HIP 72 + HIP 36 | 195 |
| 42 | HIP 72 + HIP 44 | 195 |
| 43 | HIP 72 + HIP 52 | 200 |
| 44 | HIP 72 + HIP 60 | 205 |
| 45 | HIP 72 + HIP 72 | 210 |
| 46 | HIP 90 + HIP 14 | 195 |
| 47 | HIP 90 + HIP 17 | 195 |
| 48 | HIP 90 + HIP 20 | 195 |
| 49 | HIP 90 + HIP 28 | 200 |
| 50 | HIP 90 + HIP 36 | 200 |
| 51 | HIP 90 + HIP 44 | 205 |
| 52 | HIP 90 + HIP 52 | 210 |
| 53 | HIP 90 + HIP 60 | 215 |
| 54 | HIP 90 + HIP 72 | 220 |
| 55 | HIP 90 + HIP 90 | 230 |
