Hydraulics Solenoid Valves
Solenoid Valves

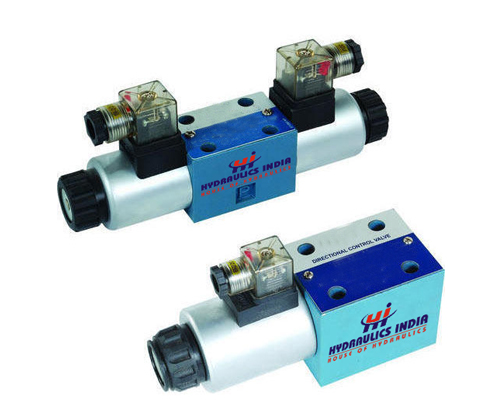

4/3 and 4/2 Directional Valves with wet pin DC and AC solenoids,Type 4WE 6 or 10
- The 4WE 6 ro 10 Directional valves are solenoid operated directional spool valves.
- They control the start, stop and directional flow.
- It is unnecessary to open the pressure tight chamber when changing the coil.
- Under urgent situation,the spool can be driven by hidden hand override.
- Solenoid coil can be rotated through the 90°.
- Coil can be replaced without releasing any fluid.
- Choice of either central or individual electrical connections.
- Optional hand emergency.
- All valve can be changed from AC to DC or DC to AC by changing coil only.

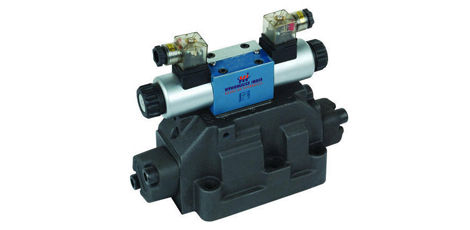

4/2 and 4/3 way Directional Valves Pilot operated Type 4WEH.Externally Pilot Operated Type 4WH
- There are four different pilot control type to control main valve’s spool moving accurately.
- It is sued to control start, stop and directional fluid flow.
- The shifting time also can be adjusted by assembling throle and check valve.

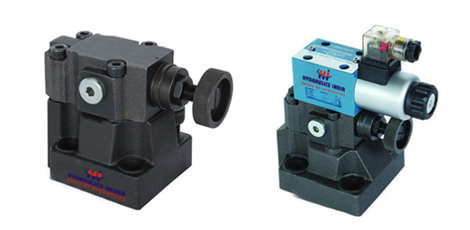

Pressure Relief Valve,Pilot Operated Type DB : DBW
- They are used for the limitation (DB) and solenoid actuated unloading (DBW) of the control pressure.
- Main valve’s unloading can be done by installing solenoid operated directional valve.
- It is also can be reduced impact when unloading by installing delay valve.

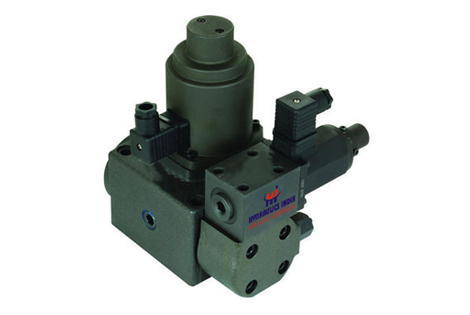

Proportional Pressure Relief & Flow Valves Pilot Operated Type EFBG
- The Proportional relief timing valve is connected by Proportional relief valve and Proportional throttle valve.
- It controls flow by inlet throttle control type to reduce system waste.
- because inlet pressure follow loading pressure for small pressure difference.
- System pressure and output flow can be proportional control quickly by input electricity signal on valve proportional solenoid.
